Overview
This guide outlines how to properly reboot or shutdown the VIGILANT system.
WARNING: Do not toggle the On/Off switch without first shutting down the web-interface. Doing so can cause data corruption which can cause the monitor to lose historical data and not operate. The only exception to this rule is when the monitor is already in a state which the web-interface cannot be accessed.
Either of these actions may be needed for the following reasons:
- Reboot:
- When the monitor is updated to a new software version.
- Testing of relay 2 (watchdog) alarm.
- Shutdown:
- When disconnecting the monitor from any power source.
Instructions
For both actions, you must be connected to the Vigilant monitor and have access to the web-interface. For more information on how to connect and login please contact Eagle Eye or your service representative. Additional support guides can be found on the VIGILANT Support landing page.
- From the Home page, click the Settings button on top menu bar
- On the Settings page, click the Actions button
- On the Actions page, click either the Reboot or Shutdown button and proceed to the corresponding steps below.
1. Reboot

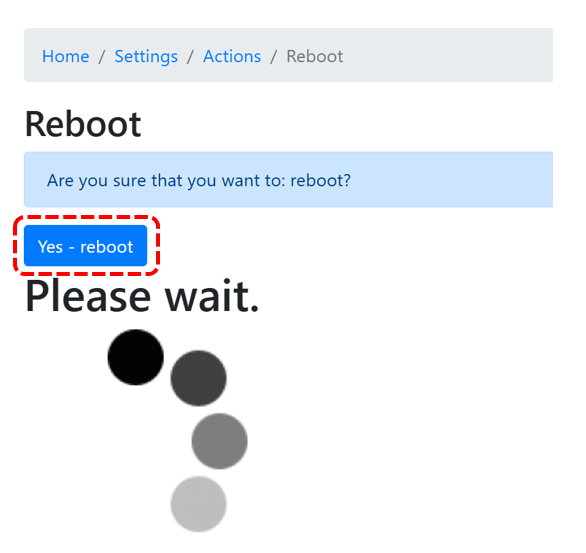

- Click the Yes – reboot button
- A progress wheel will start spinning
- Wait up to 3 minutes, the page should re-load automatically when the reboot is complete
2. Shutdown
- Click the Yes – Shutdown button
- No further feedback will be provided on this page, to confrim the monitor is shutdown try refreshing the page. Once the page no longer loads, the shutdown is complete.
- Toggle the On/Off switch up to the Off position
