The Ultimate Solution for Welding Machine Testing

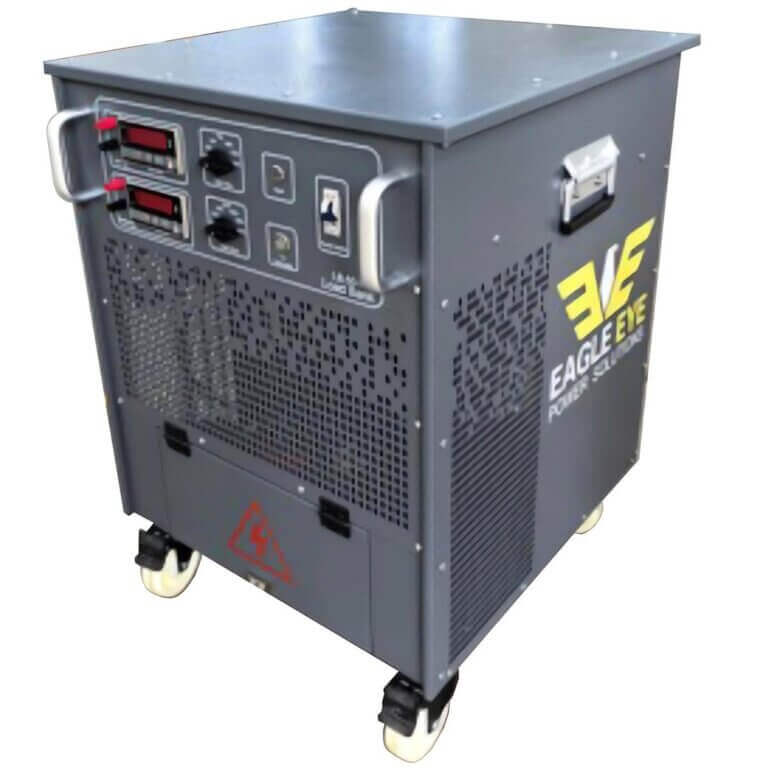

The Eagle Eye Power Solutions LB-50-750 Welding Load Bank is an advanced tool designed to deliver adjustable load for precise troubleshooting, calibration, and demonstration of welding power sources and generators.
- Trusted replacement for the Miller Electric 750 load bank
- Advanced measurement and control technology
- Fully integrated DC load functionality
- Clear and accurate data display
- Durable load control systems for reliability
- Optimized heat dissipation for efficient operation
The LB-50-750 simplifies your testing processes before and after welder repairs, providing unparalleled performance and reliability to meet the most demanding requirements.
Key Features
- Caster wheels for easy maneuvering
- Two load selection switch ranges for fine tuning loads from 25-750 Amps
- Digital displays for AC and DC output
- Includes 16 foot (5 meter) power cord
Specifications
| Input Power | 115 VAC 50/60 Hz |
|---|---|
| Rated Voltage | 50 VAC/VDC (max voltage) |
| Rated Current | 750A at 50 VAC / 750A at 50VDC |
| Load Steps @ 50 VAC/VDC | Load Steps Switch 1: 25, 50, 75, 100, 125, 150A Load Steps Switch 2: 100, 200, 300, 400, 500, 600A |
| Load Tolerance (Each step / Overall) | ±5% / ±3% |
| Wire Connection | Load bank input — terminal block Primary power input — 3-pin socket |
| Insulation | Type F Electrical Insulation |
| Cooling | Forced air cooling, horizontal air intake and exhausting cooling |
| Mobility | Caster wheels and handles on sides, Two locking wheels |
| Color | Pantone Cool Gray 11 C |
| Dimensions | 19.25 x 20.625 x 11.25 in (489 x 524 x 286 mm) |
| Weight | 175 lbs (80 kg) |
| Operating Environment | Operating Temperature: 5 – 122 °F (-15 – 50 °C) Humidity: ≤95% RH |
Resources & Support
FAQs
What are some common applications areas for this product?
Common applications include but are not limited to:
- DC Generator Systems
- DC Battery Systems
- UPS Testing
- Rectifiers
- Power Supply
- Power Converter Units
- Standby Generators
- Diesel and Gas Turbines
- Micro-turbines
- Wind Generators
- Solar Arrays
- Electrical Distribution Systems
- Circuit Breakers
- Other Electrical and DC Power Supply Testing
Are the LB-Series constant current load banks compatible with online applications?
Yes, the constant current load bank could be used in an online application however we do not recommend this practice unless testing the performance of the charger / rectifier as discharging the batteries while connected to a load source leaves the batteries vulnerable for system failure.
What is meant by constant current?
Constant current means that the load bank will deliver a constant load set by the user from the beginning to end of a load test regardless of the drop in voltage.
What safety cutoffs do the LB-Series Constant Current load banks have?
The DC load bank will shut down based on user adjustable settings of time, string voltage, and capacity. It also has thermal protection shutdown.
Is the load bank able to discharge strings in parallel?
As long as the nominal voltage falls within the working voltage of the specific unit the load tester will be able to discharge parallel strings.
