TALON™ SERIES – AC Load Banks
- Discover Additional Solutions:
- TALON Nest
- TALON Edge
- TALON Apex
Engineered for data centers, utilities, industrial facilities, and critical power applications, these load banks support commissioning, maintenance, acceptance testing, and system validation for:
- Generators
- UPS Systems
- Switchgear
- Transformers
- Power Distribution Equipment

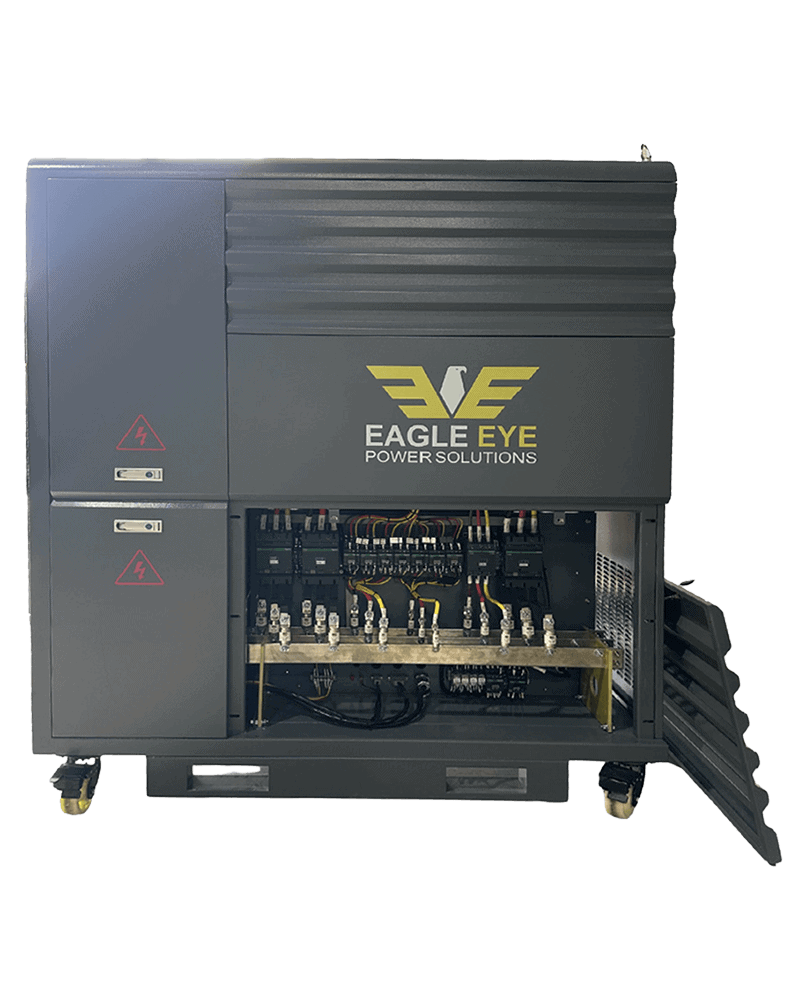

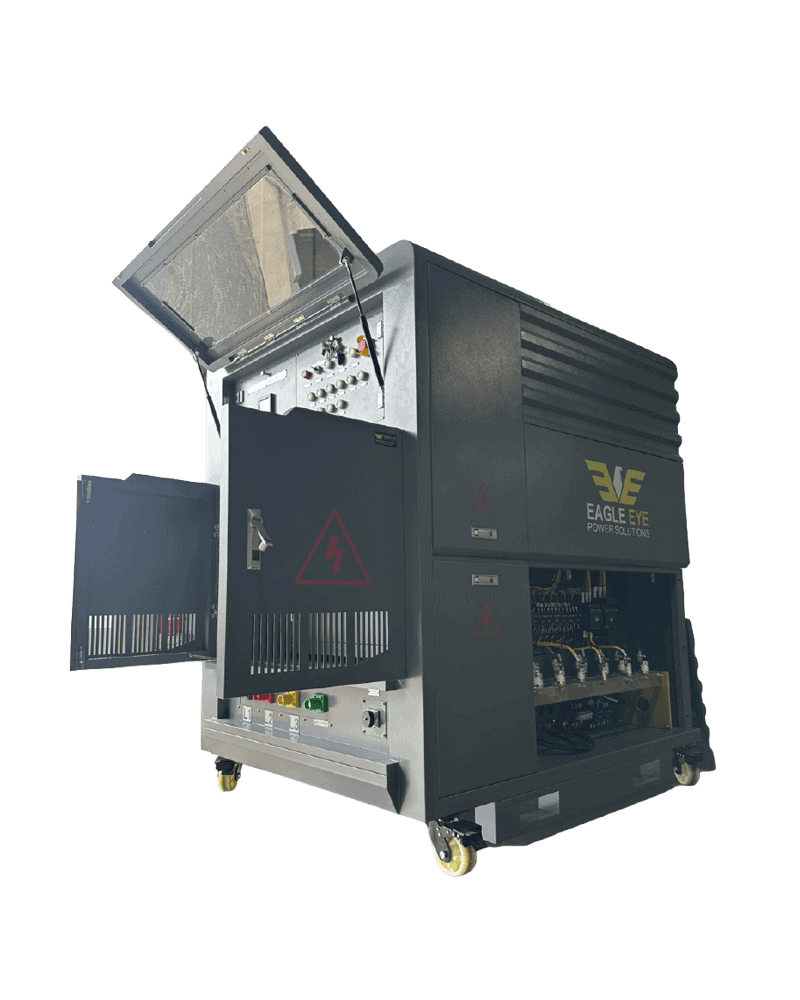

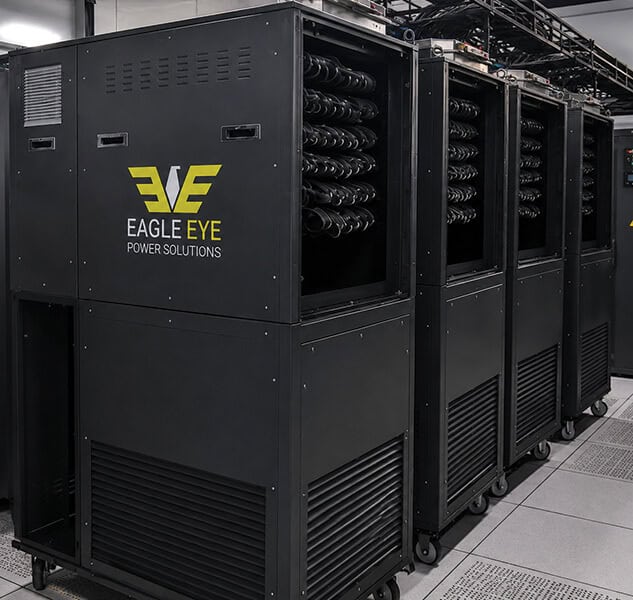

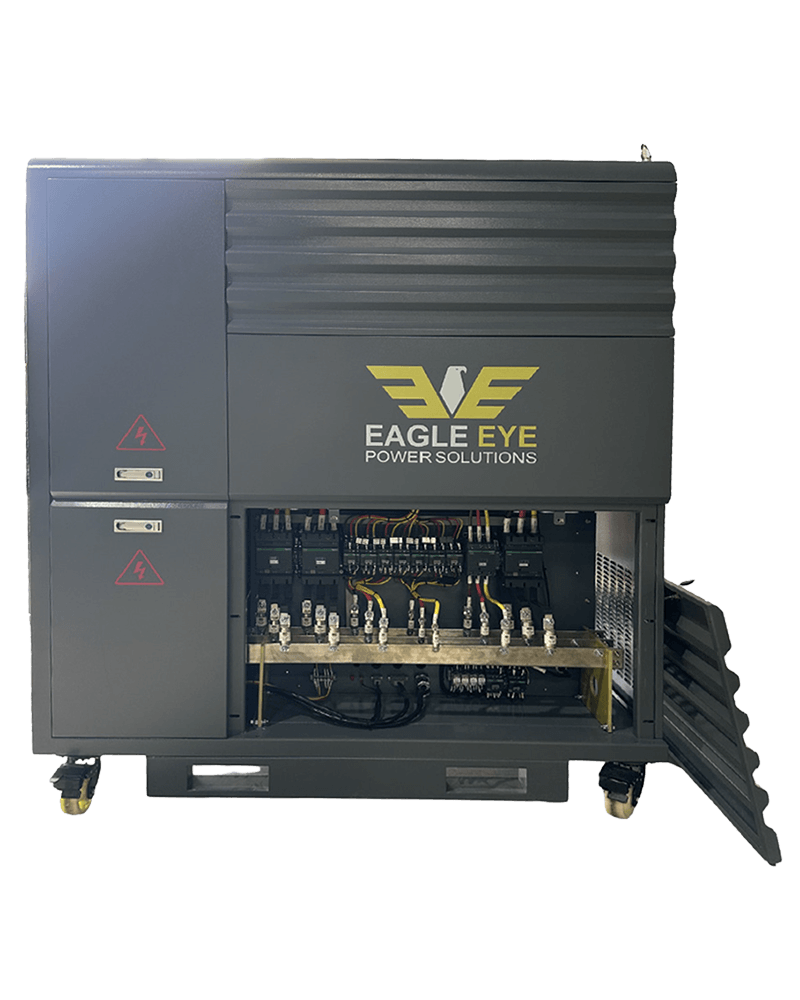

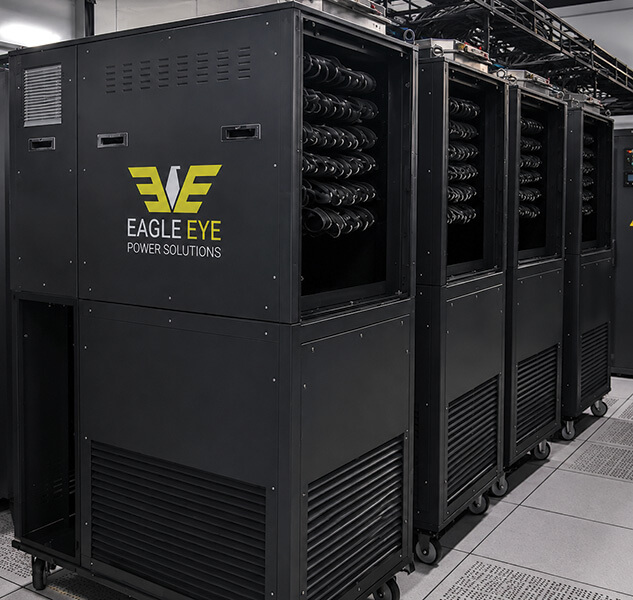

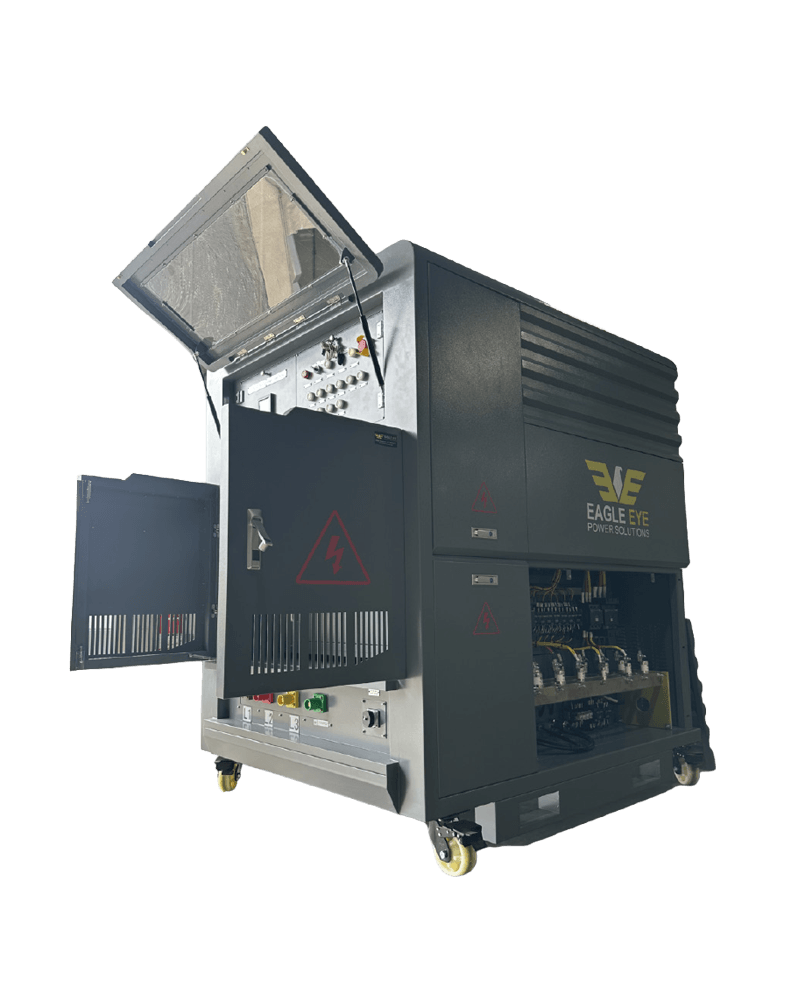

The series features rugged portable construction with lifting provisions, forklift access, and heavy-duty casters for field and rental use. Vertical forced-air cooling supports continuous high-power operation and controlled heat rejection during data center floor testing.
TALON Edge supports local panel operation or PC-based control for:
- Manual Load Steps
- Automated Test Profiles
- Real-Time Monitoring
- Data Logging Trend Review
- Report Exporting
Integrated protection includes emergency stop, fan interlock, airflow monitoring, over-temperature, over-voltage, short-circuit protection, audible/visual alarms, and chassis grounding.
TALON Edge Applications
- AC Power System Commissioning, Startup & Recommissioning
- Generator Set (Gen Set) Commissioning, Acceptance Testing & Preventative Maintenance
- UPS Power System Testing & Validation
- Switchgear Testing & Verification
- OEM Factory Production Testing
- Product Research, Development & Endurance Testing
- Engine, Emissions & Gas Turbine Testing
- Renewable Energy System Testing (Solar & Wind)
- Locomotive Power System Testing
- Marine Power Generation System Testing
- Rental Fleet Power Generation Equipment Testing & Maintenance
- Critical Power Infrastructure Preventative Maintenance Programs
Key Features

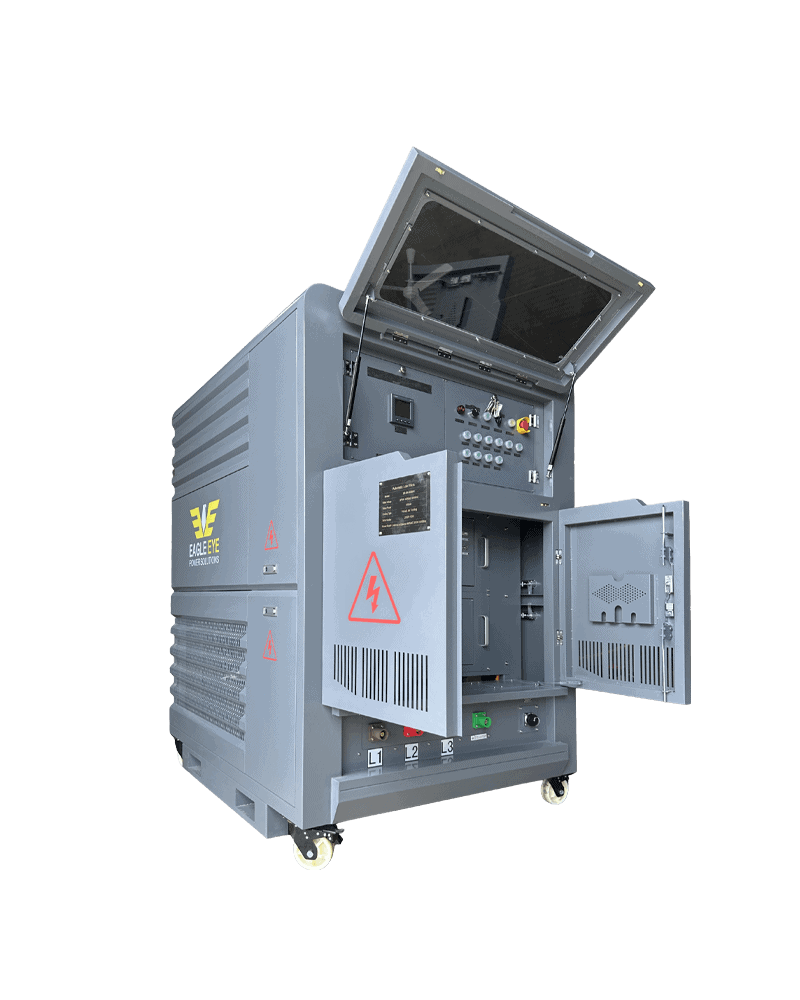

- 3-Phase Resistive Design:
Built for unity power factor loading of generators, UPS systems, switchgear, and distribution equipment. - High-Temperature Resistor Elements:
NiCr alloy resistor elements are designed for stable resistance, high-temperature operation, and continuous-duty load testing. - Stainless Steel / Insulated Resistor Construction:
Resistor assemblies use stainless steel sheathing/supports with high-temperature insulation for durability in the cooling air steam. - Defined Load Step Architecture:
Discrete kW stages support repeatable test setup and controlled load transitions. - Vertical Forced-Air Cooling:
Directs heat upward and away from the test area, supporting data center floor testing and controlled - heat rejection.
- De-Rate Capability:
Supports reduced-voltage testing with kW output adjusted based on applied voltage.
Specifications
| Voltage Versions | 3-Phase 3-Wire w/ GND: 480 (nominal) or 240VAC 3P 3-Phase 4-Wire w/ GND: 480/277VAC 3P/1P (nominal) or 208/120VAC 3P/1P |
| kW Models | 110, 210, 310, 410, 510, 610kW |
| Frequency | 50/60 Hz |
| Resolution | 1 kW |
| Dimensions | Approx. 49.25″ x 34″ x 71″ (1250 × 864 × 1800 mm) (L × W × H, excluding casters and lifting rings) |
| Digital Display | LCD multiple function display meter |
| Communication | RS232/485, USB/RS232 adapter provided |
| Cooling | Horizontal intake, vertical discharge |
| Environmental | 14 – 122 °F (-10 – 50 °C), ≤95% RH |
| Control | Local panel control or control via PC Software |
| Accessories Included | • 30ft (10m) RS485 software cable • RS485/RS232/USB converter • Data management software |
Resources & Support
Product Literature
Video Resources
FAQs
What are the common applications for this product?
- AC Power System Commissioning, Startup & Recommissioning
- Generator Set (Gen Set) Commissioning, Acceptance Testing & Preventative Maintenance
- UPS Power System Testing & Validation
- Switchgear Testing & Verification
- OEM Factory Production Testing
- Product Research, Development & Endurance Testing
- Engine, Emissions & Gas Turbine Testing
- Renewable Energy System Testing (Solar & Wind)
- Locomotive Power System Testing
- Marine Power Generation System Testing
- Rental Fleet Power Generation Equipment Testing & Maintenance
- Critical Power Infrastructure Preventative Maintenance Programs
