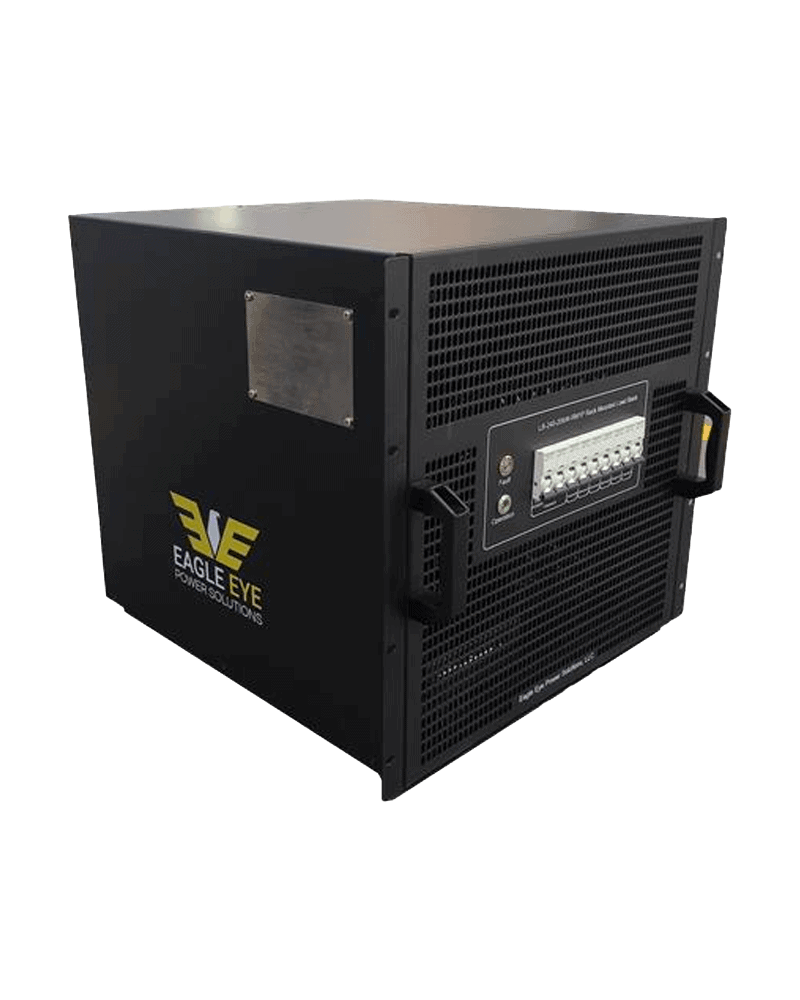

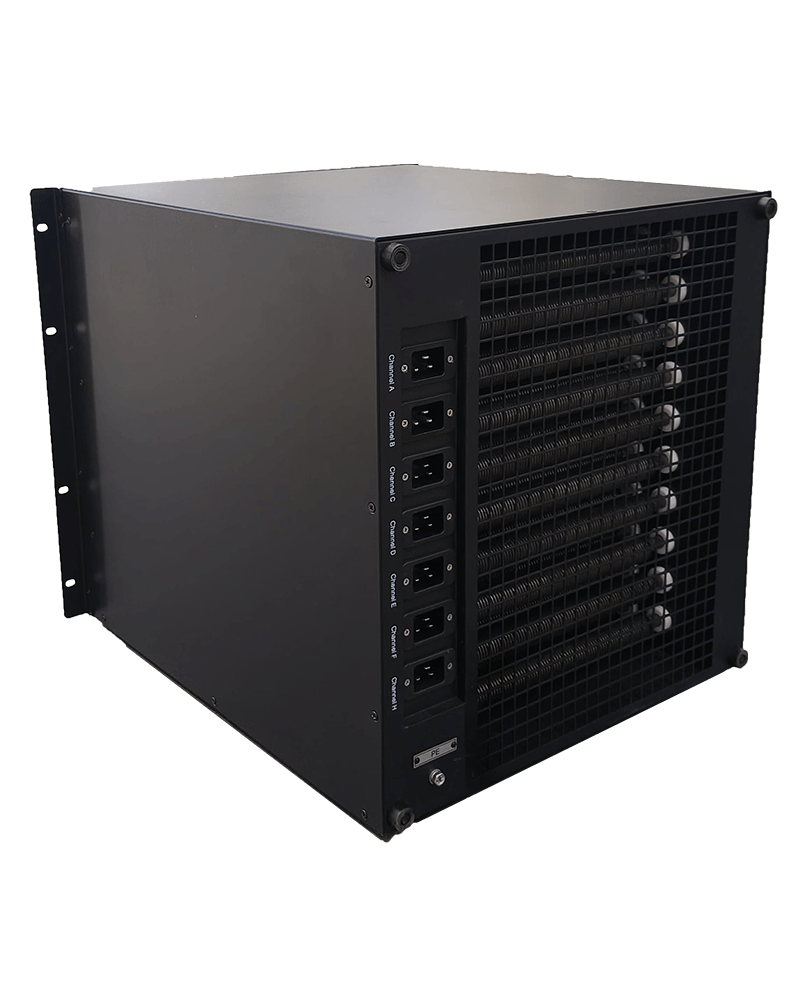

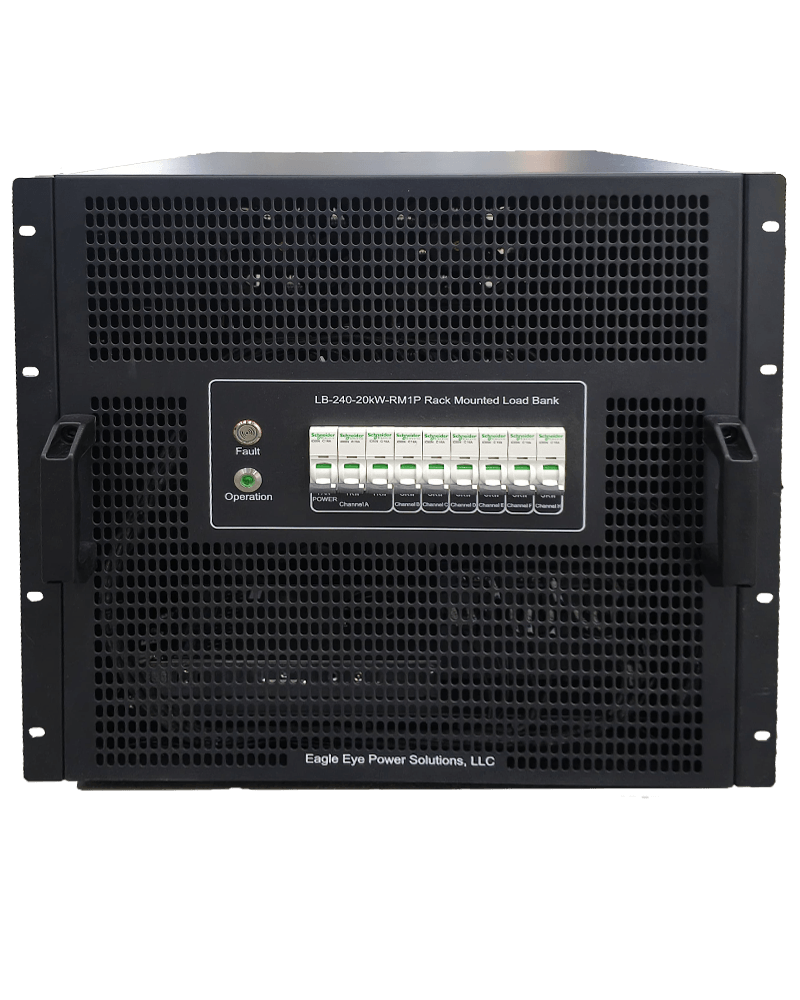

Engineered for rack-level data center testing, commissioning, and thermal validation. Designed for installation in standard server rack environments, the series provides a controlled resistive load up to 20kW to simulate IT equipment before servers are installed or during power and cooling verification:
Each unit:
- Is built for realistic white space testing in data center environments
- Supports PDU validation and UPS testing
- Is ideal for rack circuit loading and airflow studies
- Enables HVAC performance verification
- Has static fan models that provide fixed airflow for repeatable testing
- Offers variable fan control adjustments of airflow and heat rejection
- Helps simulate expected server operating conditions for more accurate testing and commissioning results
TALON Nest Applications
- Data center commissioning and integrated systems testing
- Rack-level UPS and PDU validation
- Branch circuit and breaker load testing
- Simulated server load testing before IT equipment installation
- Hot aisle / cold aisle airflow verification
- Rack power density testing from 1–20kW
- Load balancing across rack PDUs and panel-boards
- Burn-in testing for new data halls or renovated white space
- Capacity planning for future server deployments
- Spot load testing during maintenance or troubleshooting
- Thermal sensor and monitoring system verification
- Factory acceptance testing for rack-level power systems
- Temporary IT load simulation during migration or cutover projects
Key Features

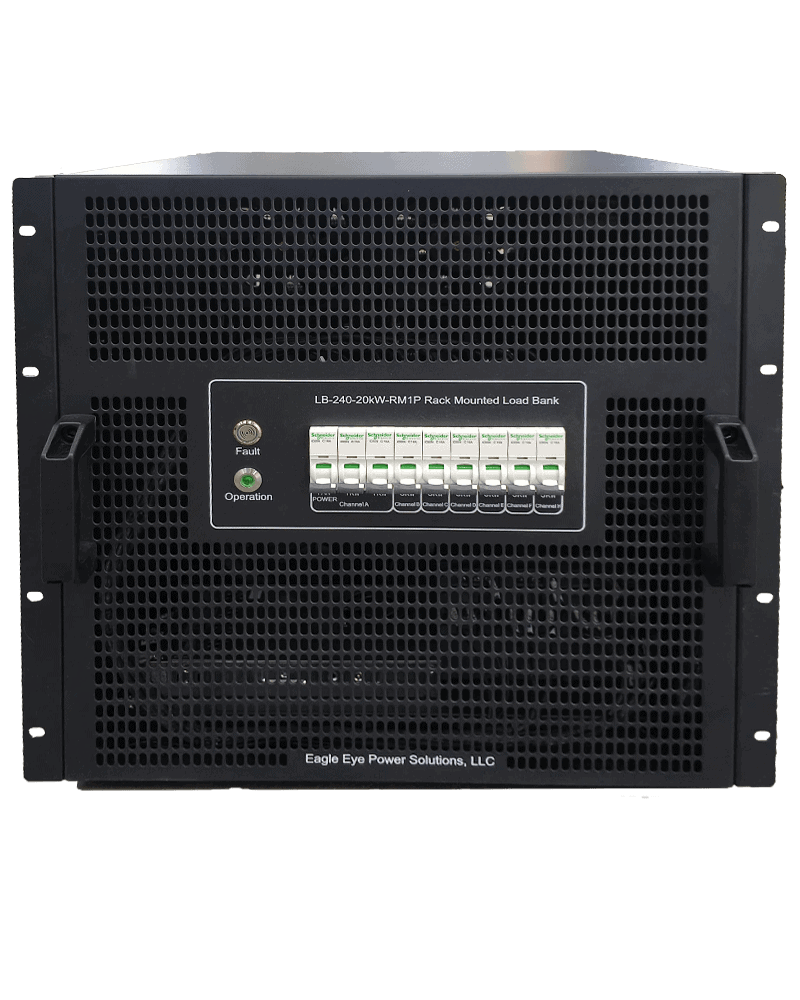

- Up to 20kW Rack-Level Loading:

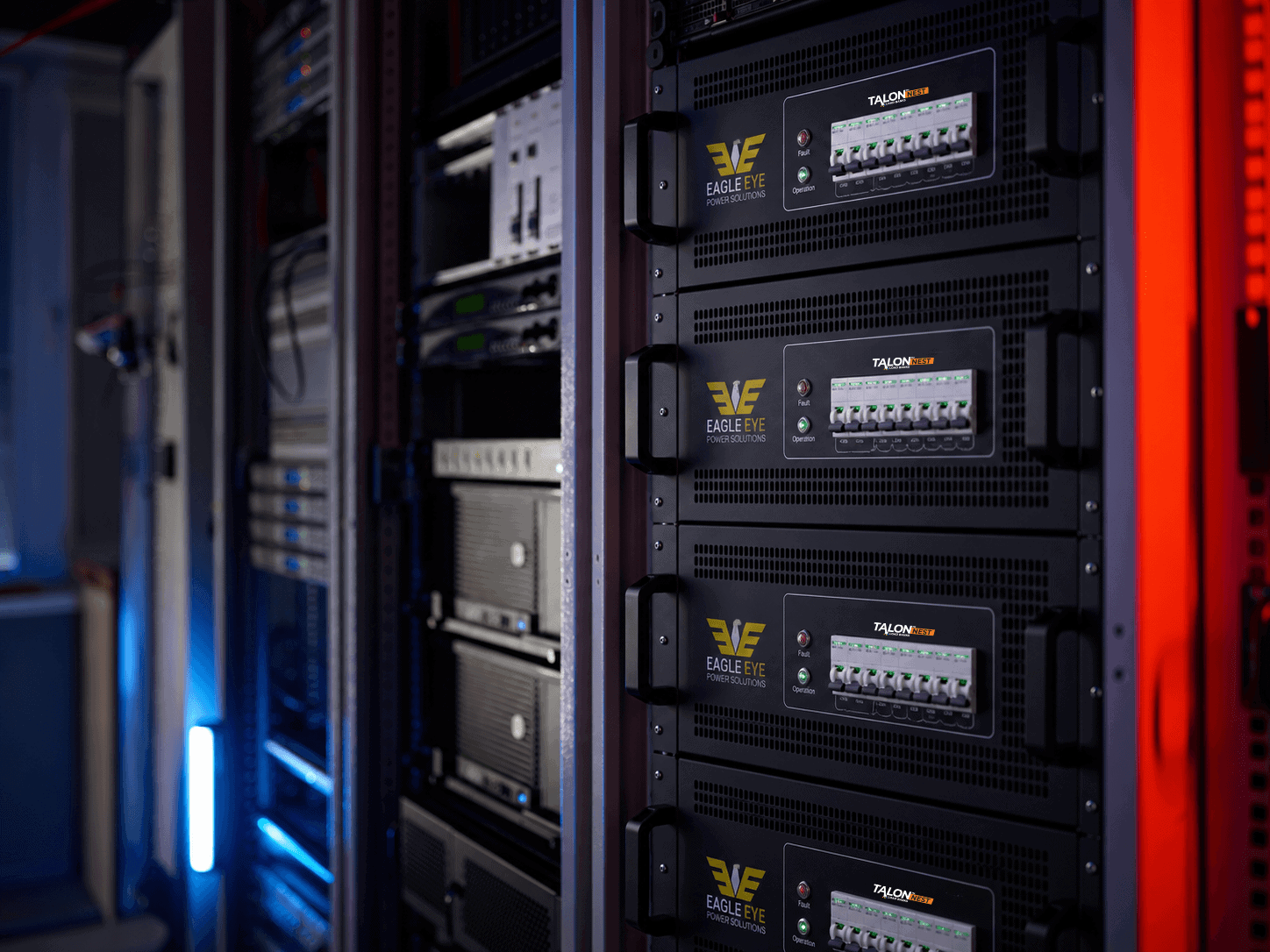

Simulates IT load for rack, PDU, UPS, and branch circuit validation. - Standard Rack-Mounted Design:
Built for deployment in data center cabinets and aisle testing environments. - Static or Variable Fan Control:
Supports fixed airflow testing or adjustable airflow to better match server thermal profiles. - Adjustable Load Step Control:
Allows engineers to apply controlled heat load for staged commissioning, burn-in, and capacity testing. - Hot Aisle / Cold Aisle Validation:
Helps verify airflow paths, temperature rise, rack density, and cooling system performance. - Integrated Protection System:
Includes branch circuit protection, fan/load interlocks, airflow monitoring, over-temperature protection, over-voltage protection, E-stop, alarms, and chassis grounding.
Specifications

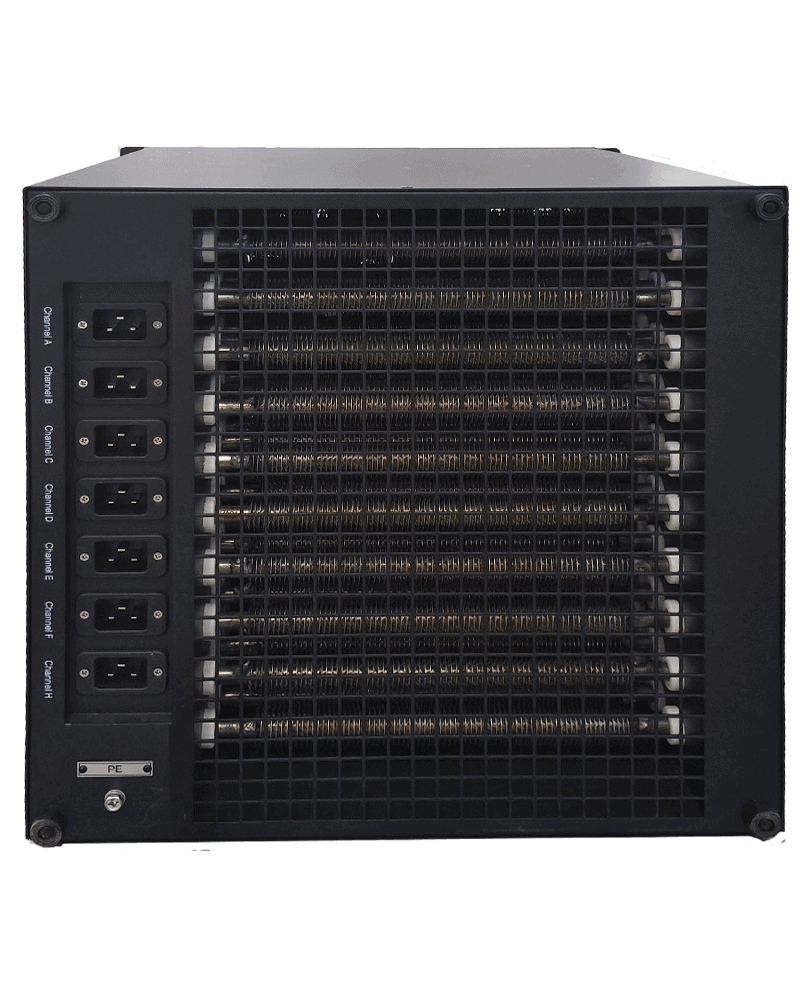

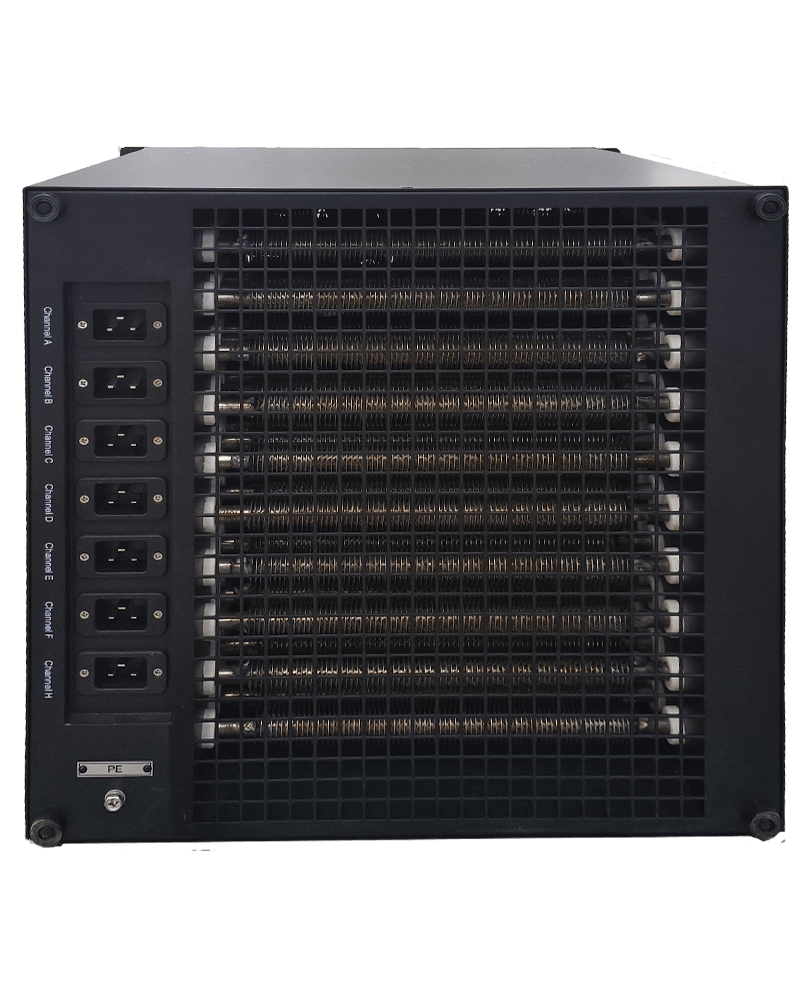

| Nominal Voltage Rating 240VAC Single Phase kW Models Up to 20kW Frequency 60Hz Resolution Down to 1kW (depending on model) Cooling Forced air cooling, Environmental -20 – 50°C (14 – 122°F), ≤95% RH, IP20 Rating Dimensions 12U Weight Approximately 77 lbs. Power Connections C20 Plugs | 120, 240 or 120/240 Single Phase |
| kW Models | 10, 30, 50, 75, 100, 125, 150 & 200 kW |
| Frequency | 50/60 Hz |
| Resolution | 1 kW |
| Configuration | Single Phase |
| Digital Display | LCD multiple function display meter |
| Communication | RS-232/485, software package provided |
| Cooling | Forced air |
| Environmental | -10 – 50°C (14 – 122°F), ≤95% RH |
| Control | Local panel control or laptop software control, RS-485 Modbus, dry contact terminal |
Resources & Support
Product Literature
Video Resources
FAQs
What are the common applications for this product?
- Data center commissioning and integrated systems testing
- Rack-level UPS and PDU validation
- Branch circuit and breaker load testing
- Simulated server load testing before IT equipment installation
- Hot aisle / cold aisle airflow verification
- Rack power density testing from 1–20kW
- Load balancing across rack PDUs and panel-boards
- Burn-in testing for new data halls or renovated white space
- Capacity planning for future server deployments
- Spot load testing during maintenance or troubleshooting
- Thermal sensor and monitoring system verification
- Factory acceptance testing for rack-level power systems
- Temporary IT load simulation during migration or cutover projects
